Leading manufacturer and exporter of Butt weld equal tee and cross from India Equal Tee and Cross We offer Equal Tee Fittings and Equal Cross Fittings a wide range of dimensions which makes them suitable for interlinked plumbing systems confined in an area. Our Equal Tee fittings resemble the alphabet ' T ', where two horizontal and. o e vertical pipes can be ttached. Our range of Equal Tee and Equal Cross are flawlessly engineered using latest echnology and are widely used in diverse piping systems across industries.

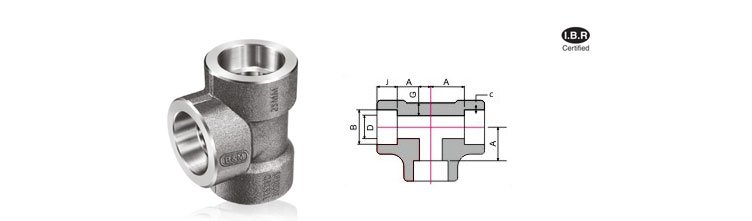

Nominal Size | A | B | C | D | J(min.) | G(min.) |
6 | 11 | 11.20 / 10.80 | 3.18 / 3.18 | 7.6 / 6.1 | 9.5 | 2.41 |
8 | 11 | 14.60 / 14.20 | 3.78 / 3.30 | 10.0 / 8.5 | 9.5 | 3.02 |
10 | 13.5 | 18.00 / 17.60 | 4.01 / 3.50 | 13.3 / 11.8 | 9.5 | 3.20 |
15 | 15.5 | 22.20 / 21.80 | 4.67 / 4.09 | 16.6 / 15.0 | 9.5 | 3.73 |
20 | 19 | 27.60 / 27.20 | 4.90 / 4.27 | 21.7 / 20.2 | 12.5 | 3.91 |
25 | 22.5 | 34.30 / 33.90 | 5.69 / 4.98 | 27.4 / 25.9 | 12.5 | 4.55 |
32 | 27.0 | 43.10 / 42.70 | 6.07 / 5.28 | 35.8 / 34.3 | 12.5 | 4.85 |
40 | 32 | 49.20 / 48.80 | 6.35 5.54 | 41.6 / 40.1 | 12.5 | 5.08 |
50 | 38 | 61.70 / 61.20 | 6.93 / 6.04 | 53.3 / 51.7 | 16 | 5.54 |
65 | 41 | 74.40 / 73.90 | 8.76 / 7.67 | 64.2 /61.2 | 16 | 7.01 |
Nickel Alloy
ASME SA 182 F 304, 304L, 316, 316L, 316 LN
Carbon Steel
ASTM / ASME A 105.
( Alloy Steeld connections for critical applications. )
