BM136/137 - SLIP ON FLANGES



Class-150 & Class-300

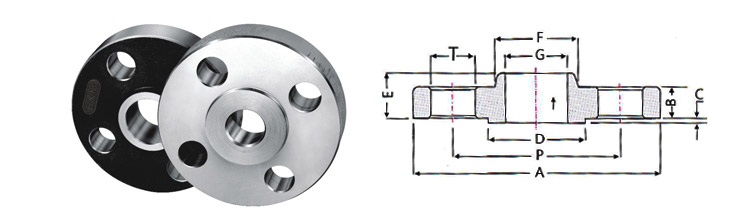

Slip on Flanges


  • CNC machined, VMC Drilled.
  • Designed as per ASME standards.
  • High quality antirust oil coating.
  • Graded forging to ensure crack free installation.

 B&M-136 Class150
N.Bore

A

B

C

D

E

F

 G P T Holes
15 89 11.1 1.6 35 16 30 22.4 60.3 15.9 4
20 98 12.7 1.6 43 16 38 27.7 69.8 15.9 4
25 108 14.3 1.6 51 17 49 34.5 79.4 15.9 4
32 117 15.9 1.6 64 21 59 43.2 88.9 15.9 4
40 127 17.5 1.6 73 22 65 49.5 98.4 15.9 4
50 152 19 1.6 92 25 78 62 120.6 19 4
65 178 22.2 1.6 105 29 90 74.7 139.7 19 4
80 190 23.8 1.6 127 30 108 90.7 152.4 19 4
90 216 23.8 1.6 140 32 122 103.4 177.8 19 8
100 229 23.8 1.6 157 33 135 116.1 190.5 19 8
125 254 23.8 1.6 186 37 164 143.8 215.9 22.2 8
150 279 25.4 1.6 216 40 192 170.7 241.3 22.2 8
200 343 28 1.6 270 44 246 221.5 288.4 22.2 8
250 406 30.2 1.6 324 49 305 276.4 362 25.4 12
300 483 34.8 1.6 381 56 365 327.2 431.8 25.4 12


 B&M-137 Class300
N.Bore

A

B

C

D

E

F

 G P T Holes
15 95 14.3 1.6 35 22 38 22.4 66.7 15.9 4
20 117 15.9 1.6 43 25 48 27.7 82.6 19 4
25 124 17.5 1.6 51 27 54 34.5 88.9 19 4
32 133 19 1.6 64 27 64 43.2 98.4 19 4
40 156 20.6 1.6 73 30 70 49.5 114.3 22.2 4
50 165 22.2 1.6 92 33 84 62 127 19 8
65 190 25.4 1.6 105 38 100 74.7 149.2 22.2 8
80 210 28.6 1.6 127 43 117 90.7 168.3 22.2 8
90 229 30.2 1.6 140 44 133 103.4 184.2 22.2 8
100 254 31.8 1.6 157 48 146 116.1 200 22.2 8
125 279 34.9 1.6 186 51 178 143.8 235 22.2 8
150 318 36.5 1.6 216 52 206 170.7 269.9 22.2 12
200 381 41.3 1.6 270 62 260 221.5 330.2 25.4 12
250 444 47.6 1.6 324 67 321 276.4 387.4 28.6 16
300 521 50.8 1.6 381 73 375 327.2 450.8 31.8 16
