Leading manufacturer and exporter of Butt weld equal tee and cross from India Equal Tee and Cross We offer Equal Tee Fittings and Equal Cross Fittings a wide range of dimensions which makes them suitable for interlinked plumbing systems confined in an area. Our Equal Tee fittings resemble the alphabet ' T ', where two horizontal and. o e vertical pipes can be ttached. Our range of Equal Tee and Equal Cross are flawlessly engineered using latest echnology and are widely used in diverse piping systems across industries.

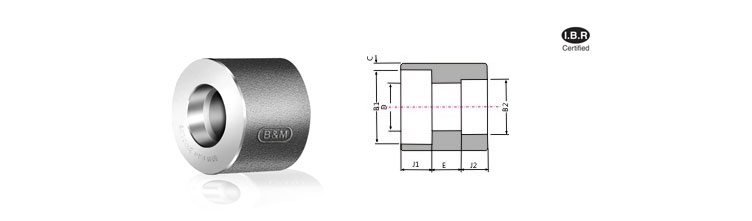

| Nominal Size | B1 | B2 | C | |||
| Min. | Max. | Min. | Max. | Min. | Max. | |
| 8x6 | 14.20 | 14.60 | 10.80 | 11.20 | 3.30 | 3.78 |
| 10x8 | 17.60 | 18.00 | 14.20 | 14.60 | 3.50 | 4.01 |
| 15x10 | 21.80 | 22.20 | 17.60 | 18.00 | 4.09 | 4.67 |
| 20x15 | 27.20 | 27.60 | 21.80 | 22.20 | 4.27 | 4.90 |
| 25x20 | 33.90 | 34.30 | 21.80 | 22.20 | 4.98 | 5.69 |
| 32x20 | 33.90 | 34.3 | 27.20 | 27.60 | 4.98 | 5.69 |
| 32x25 | 42.70 | 43.10 | 27.20 | 27.60 | 5.28 | 6.07 |
| 40x25 | 42.70 | 43.10 | 33.90 | 34.30 | 5.28 | 6.07 |
| 40x32 | 48.80 | 49.20 | 42.70 | 34.30 | 5.54 | 6.35 |
| 50x32 | 48.80 | 49.20 | 42.70 | 43.10 | 5.54 | 6.35 |
| 50x40 | 61.20 | 61.70 | 48.80 | 43.20 | 6.04 | 6.93 |
| Nominal Size | D | E | J1 | J2 | |
| Min. | Max. | Min. | Min. | Min. | |
| 8x6 | 6.1 | 7.6 | 6.5 | 9.5 | 9.5 |
| 10x8 | 8.5 | 10.0 | 6.5 | 9.5 | 9.5 |
| 15x10 | 11.8 | 13.3 | 6.5 | 9.5 | 9.5 |
| 20x15 | 15.0 | 16.6 | 9.5 | 12.5 | 9.5 |
| 25x20 | 15.0 | 16.6 | 9.5 | 12.5 | 9.5 |
| 32x20 | 20.2 | 21.7 | 12.5 | 12.5 | 12.5 |
| 32x25 | 20.2 | 21.7 | 12.5 | 12.5 | 12.5 |
| 40x25 | 25.9 | 27.4 | 12.5 | 12.5 | 12.5 |
| 40x32 | 25.9 | 27.4 | 12.5 | 12.5 | 12.5 |
| 50x32 | 34.3 | 35.8 | 16.0 | 16.0 | 12.5 |
| 50x40 | 34.3 | 35.8 | 16.0 | 16.0 | 12.5 |
Nickel Alloy
ASME SA 182 F 304, 304L, 316, 316L, 316 LN
Carbon Steel
ASTM / ASME A 105.
( Alloy Steeld connections for critical applications. )
