3000 LBS. ASME B16.11Male Solid
We supply and export socket welding fittings that exhibit superior functioning. These socket welding pipe fittings are designed & developed to meet diverse working conditions.
These steel socket welding fittings provide permanent welde
We supply and export a wide array of plug fittings and bushings that have good impact strength. These plugs and bushings are easy to install pipe plugs for isolation of piping systems during repair, maintenance or testing of damaged lines. Made up of superior quality raw materials, these hex plugs and bushings are highly resistant to wear and tear.

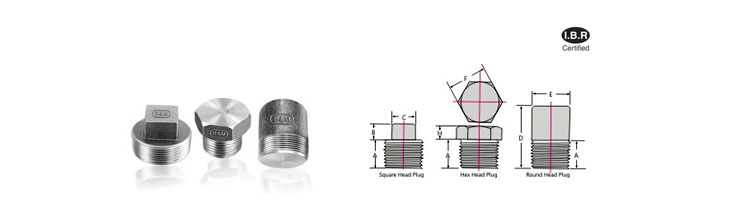

| SQUARE HEAD | HEX. HEAD | ROUND HEAD | |||||
| Nominal Size | A | B | C | H | F | D | E |
| 6 | 10 | 6 | 7 | 6 | 11 | 35 | 10 |
| 8 | 11 | 6 | 10 | 6 | 16 | 41 | 14 |
| 10 | 13 | 8 | 11 | 8 | 18 | 41 | 18 |
| 15 | 14 | 10 | 14 | 8 | 22 | 44 | 21 |
| 20 | 16 | 11 | 16 | 10 | 27 | 44 | 27 |
| 25 | 19 | 13 | 21 | 10 | 26 | 51 | 33 |
| 32 | 21 | 14 | 24 | 14 | 46 | 51 | 43 |
| 40 | 21 | 16 | 28 | 16 | 50 | 51 | 48 |
| 50 | 22 | 18 | 32 | 18 | 65 | 64 | 60 |
| 65 | 27 | 19 | 36 | 19 | 75 | 70 | 73 |
| 80 | 28 | 21 | 41 | 21 | 90 | 70 | 89 |
| 100 | 32 | 25 | 65 | 25 | 115 | 70 | 114 |
Nickel Alloy
ASME SA 182 F 304, 304L, 316, 316L, 316 LN
Carbon Steel
ASTM / ASME A 105.
( Alloy Steeld connections for critical applications. )
